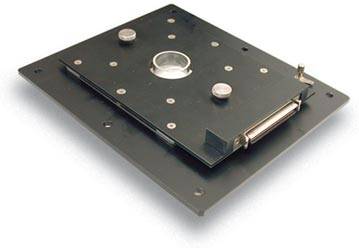

MED CONNECTOR

MED Connector
(MED-C03)

Used for communication between the MED probe and amplifier.
Provides a mechanically-stable platform for the MED probe.
Multi-layer electrical shielding rejects hum noise and provides excellent signal-to-noise ratios.
NO active on-board electrical circuitry; connectors can safely be placed in high-humidity environment (e.g. cell culture incubator).
Provides clear optical path through probe for microscopy.

Specifications

MED probe securing mechanism	Screw down
Material	Aluminum
Contact resistance	<30 mΩ
Printed wiring	4 layers (reject hum noise by a multi-shield structure)
Dimensions	W174 x H21 x D150 mm

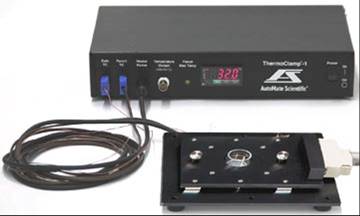

MED Heated Connector NEW!
(MED-CP02H)

Heater and thermocouple sensor are incorporated into the MED connector.
Bath temperature in the MED probe is maintained using a ThermoClamp-1^TM *controller manufactured by AutoMate Scientific, Inc.
Easy-to-use. No additional equipment necessary. Simply set the desired temperature on the control panel of the ThermoClamp-1^TM. Measured temperature is displayed on the large LCD display.
Can be used with or without perfusion. Included tubing through connector provides in-line solution heating.
Low-noise. ThermoClamp-1^TM circuitry is optimized for electrophysiology, preserving the MED64 system’s industry-leading low noise at your desired temperature.

Specifications

MED Heated Connector (MED-CP02H)
MED probe securing mechanism	Screw down
Material	Aluminum, Gold plate for contact pins
Contact resistance	<30 mΩ
Heating device	Transistor
Temperature accuracy (for solution in MED probe)	< 1 °C Usually <0.1 °C (see below)
Range of verified <0.1°C accuracy	With perfusion: < 32°C (RT = 25°C) Without perfusion: <37°C (RT = 25 °C)
Dimensions	W174 x H38 x D150 mm
Weight	700 g

Temperature controller (ThermoClamp-1^TM, manufactured by AutoMate Scientific)
Temperature controller	Auto-tuning PID (Proportional Integral Derivative ) temperature control
Resolution	0.1 °C
Set range	Ambient - 50°C
Power supply	AC 100-240V, 50/60Hz
Maximum power consumption	80W
Dimensions	W295 x H58 x D201 mm
Weight	1.0 Kg

*ThermoClamp-1 is a trademark of AutoMate Scientific Inc.
